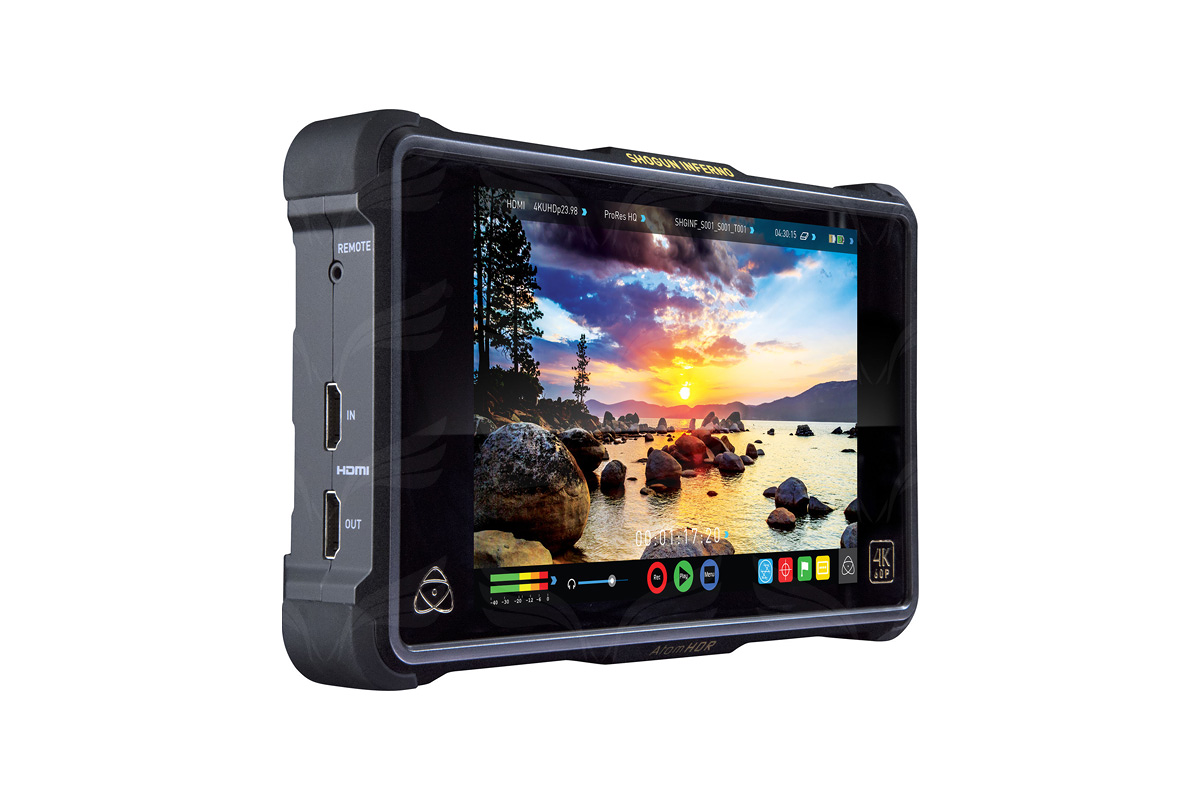

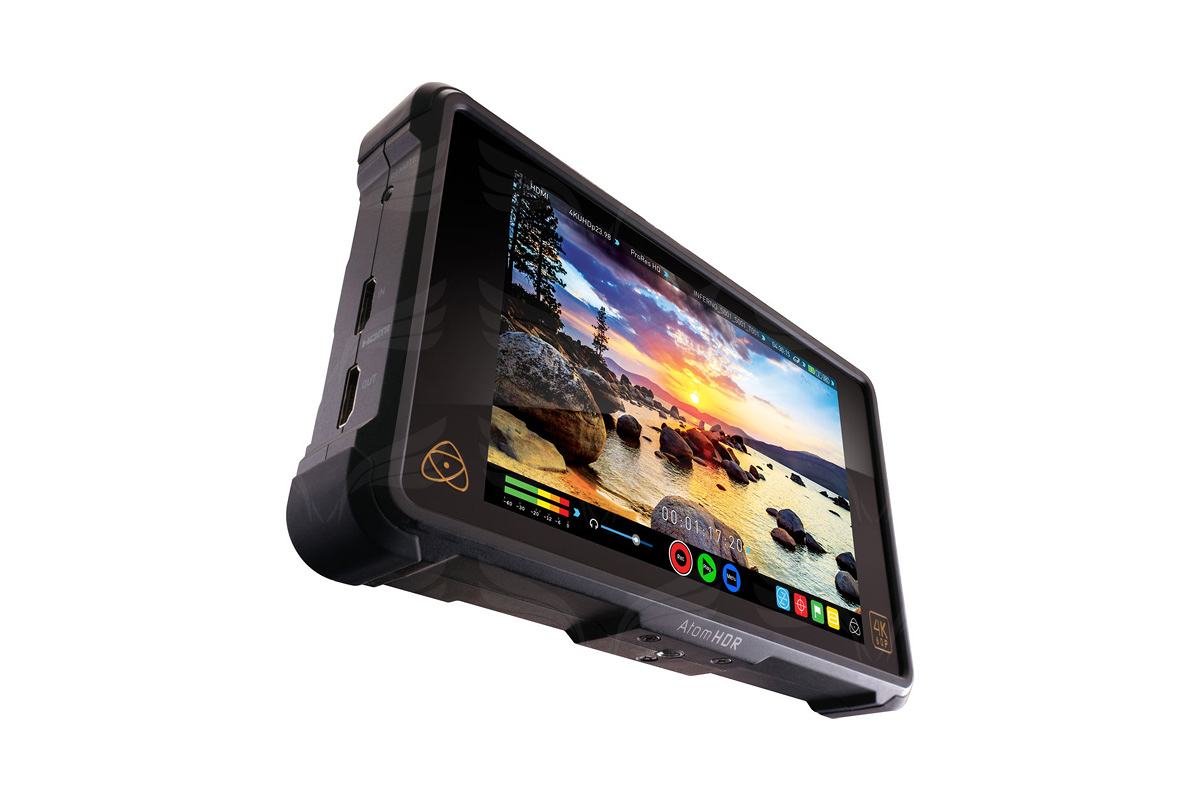

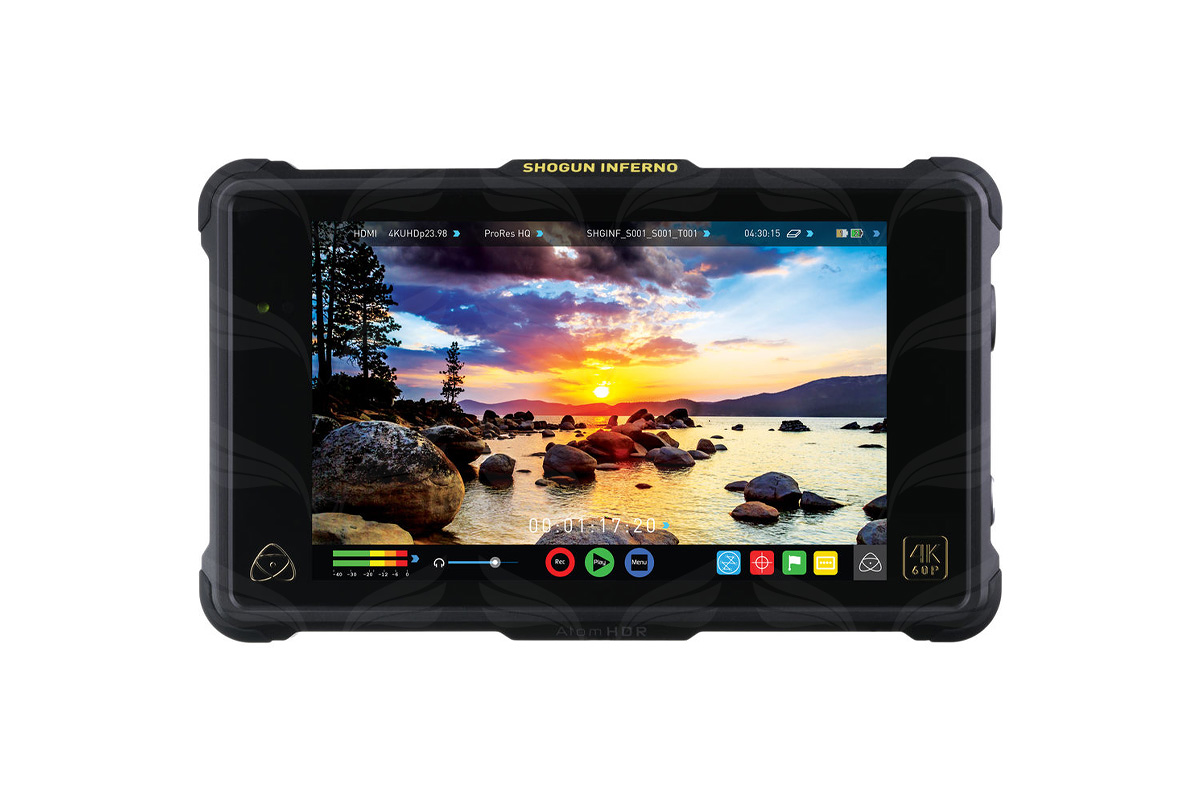

The Atomos Shogun Inferno is a 7", 1920 x 1200 on-camera recording monitor that combines 4K recording with a 10-bit FRC panel that supports native display of HDR (log) footage as well as high brightness viewing of Rec. 709 footage. It utilizes 4K HDMI and 12G-SDI inputs to support clean output signals at resolutions up to UHD 4K (3840 x 2160) at 60 fps, recording it to 2.5" SSDs using 10-bit, 4:2:2 Apple ProRes and Avid DNxHR codecs. The Inferno, unlike the similar Shogun Flame, supports Quad 3G-SDI input. It even supports DCI 4K (4096 x 2160) raw video streams over SDI from select Sony and Canon cameras, encoding it as ProRes/DNxHR files
Display | |
---|---|
Type | 7.1" (18 cm) IPS capacitive touchscreen |
Resolution | 1920 x 1200 325 ppi |
Bit Depth | 10-bit (8-bit plus FRC) |
Video Aspect Ratio | Native: 16:9 |
Brightness | 1500 cd/m2 |
LUT Support | 3D LUT (.cube file format) |
Interface | |

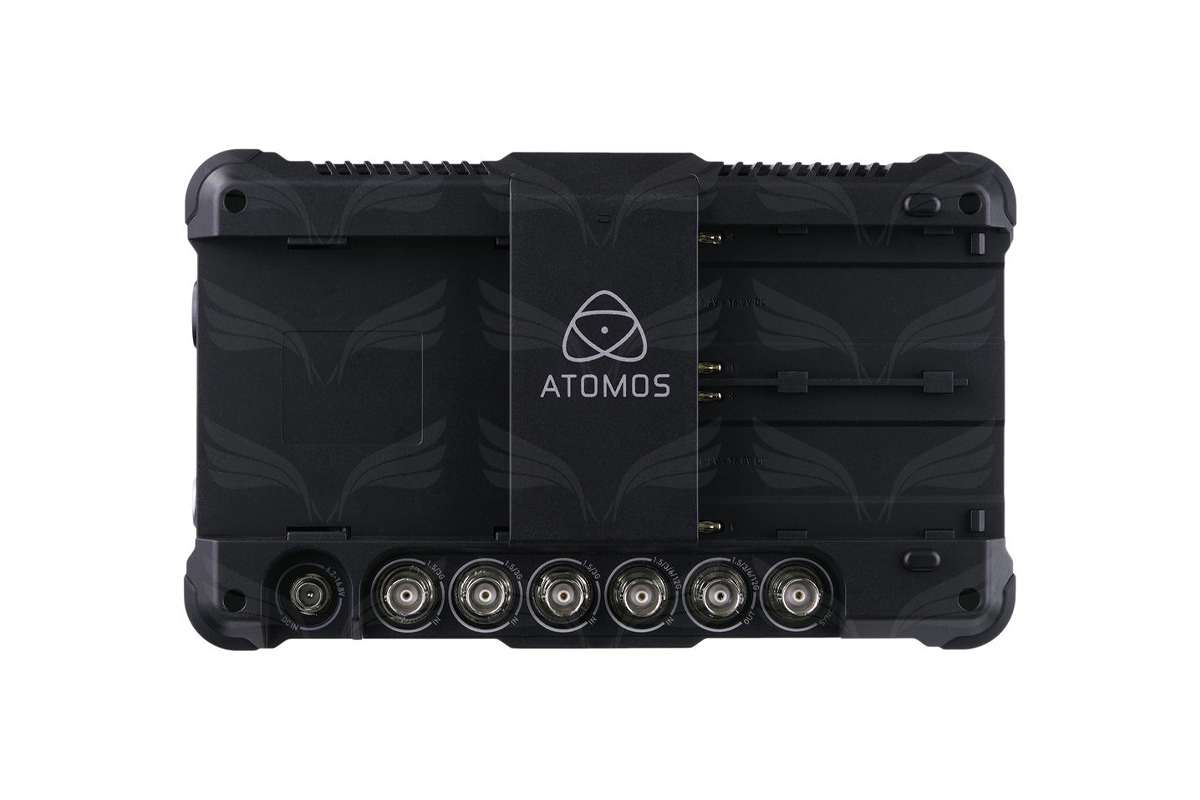

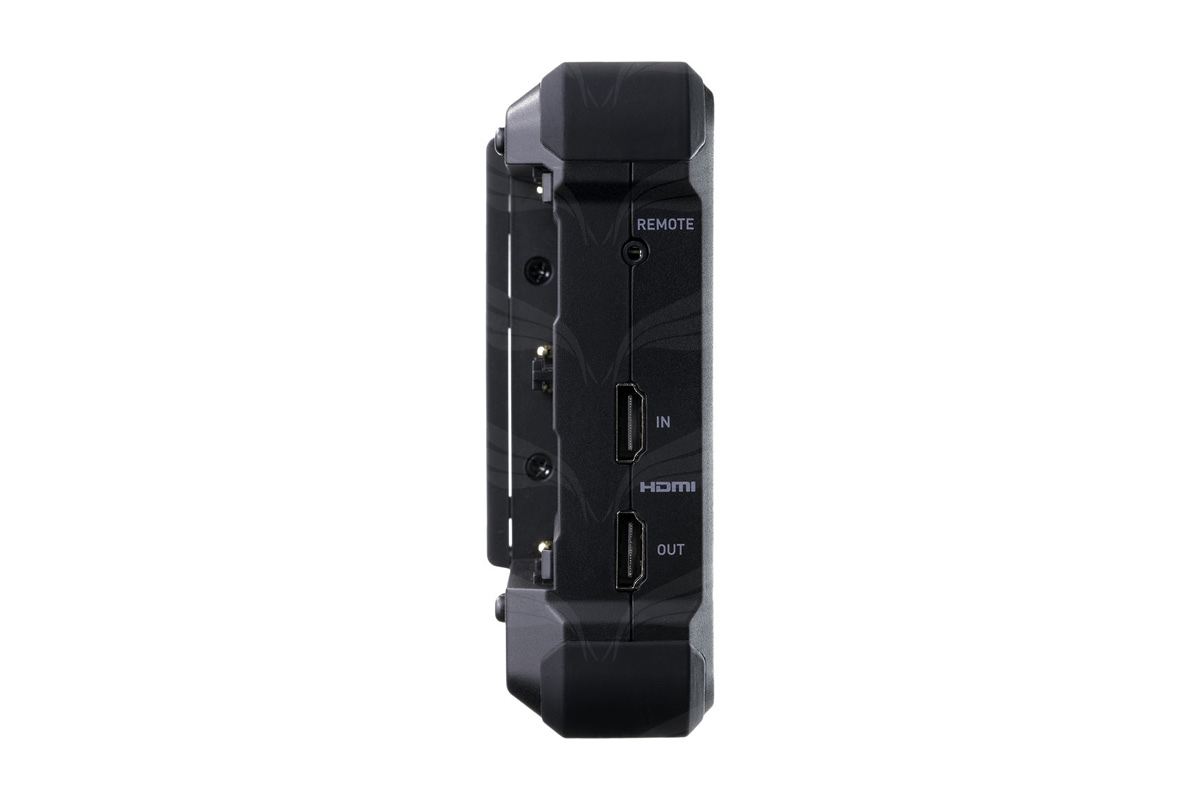

Inputs | 1 x HDMI (2.0) 4 x 3G-SDI Quad/Single 12G-SDI (BNC) - 1 x Genlock / LTC (BNC) 1 x 2.5 mm LANC 2 x XLR (included LEMO breakout cable required) |
Outputs | 1 x HDMI (2.0) 1 x 12G-SDI (BNC) 2 x XLR Out (included LEMO breakout cable required) 1 x 3.5 mm headphone jack |
Supported Video Format | |
Supported Signal | Input: 10- / 8-bit 4:2:2 (dependent on video source) Output: 10- / 8-bit 4:2:2 (dependent on video source) |
Input/Output Resolutions | HDMI: 2160p 24/25/30/50/60 1080p 24/25/30/50/60/120/240 1080i 50/60 720p 50/60 SDI: 2160p 24/25/30/50/60 1080p 24/25/30/50/60/120 1080psf 24/25/30 1080i 50/60 720p 50/60 |
Video Signal Conversion | HDMI to SDI: 2160p 24/25/30/50/60 1080p 24/25/30/50/60/100/120/ 1080i 50/60 720p 50/60 SDI to HDMI: 2160p 24/25/30/50/60 1080p 24/25/30/50/60/100/120 1080i 50/60 720p 50/60 |
Encoding Formats | DCI RAW 4096x2160 from supported cameras (Sony FS700, Sony FS7, Canon C300 MKII, Canon C500): Apple ProRes HQ, 422, LT DNxHR HQX, HQ, SQ, LB UHD 4K (3840 x 2160): Apple ProRes HQ, 422, LT DNxHR HQX, HQ, SQ, LB 1920 x 1080 Apple ProRes HQ, 422, LT DNxHD 220x, 220, 145, 36 |
Pulldown Conversion | 24/25/30psf to 24/25/30p (2:2 pulldown) 60i to 24p (3:2 pulldown) |
Supported Codecs | Raw to ProRes/DNxHR Apple ProRes: HQ, 422, LT AVID DNxHR: HQX. HQ, SQ, LB Frame Rates 4K DCI / 4K UHD: 24/25/30/50/60p SF: 30/50/60/100/120/200/240p Video to ProRes/DNxHR Apple ProRes HQ, 422, LT AVID DNxHR HQX. HQ, SQ, LB Frame Rates 4K DCI / 4K UHD: 24/25/30/50/60p SF: 30/50/60/100/120/200/240p |
Supported Audio Formats | |
HDMI | 2- or 8-channel, up to 24-bit (camera dependent) |
SDI | Up to 12-channel, 48 kHz, up to 24-bit (camera dependent) |
Dynamic Range | >90 dB |
Signal Level | Maximum: +24 dBu |
Gain | Maximum Analog Gain: +52 dB |
Phantom Power | +48 V phantom power for XLR inputs |
Remote Operation | |
HDMI | Auto HDMI trigger Supported Protocols: Canon, Sony, Atomos Open Standard |
SDI | SDI trigger camera selectable |
LANC | Supports slave configuration |
Recording Media | |
Supported Media | 4K 2.5" SSD HD High Frame Rate (50/60/120p): 2.5" SSD 2.5" HDD (7,200 rpm and up) for 1080p 50/60 HD (30p and less): 2.5" SSD 2.5" HDD (5,400 rpm and up) Note: Only use media that has been approved by Atomos |
Master Caddy Dock | Interface: 2.5" SATA to USB 2.0/3.0 |
Supported Applications | Final Cut Pro X/7+ Avid Media Composer 5.0+ Adobe Premiere 5.5+ Grass Valley EDIUS 6.0+ Sony Vegas Pro 10+ Lightworks Autodesk Smoke 2015 |
XML Support | FCPX XML native, FCP7 supported with conversion (Adobe compatible) |
General | |
Power Requirements | 6.2 to 16.8 VDC (battery or DC power input) |
Power Consumption | 10 to 24 W |
Supported Battery Types | 2 x Sony L-series |
Battery Life | 5200 mAh: up to 1.5 hours (monitor and record 4K) 7800 mAh: up to 2.2 hours (monitor and record 4K) |
Construction | ABS polycarbonate |
Dimensions | 8.4 x 5 x 1.8" (21.4 x 12.7 x 4.5 cm) |
Weight | Without Batteries & Media: 1.4 lb (0.65 kg) With Batteries & Media: 2.4 lb (1.09 kg) |
