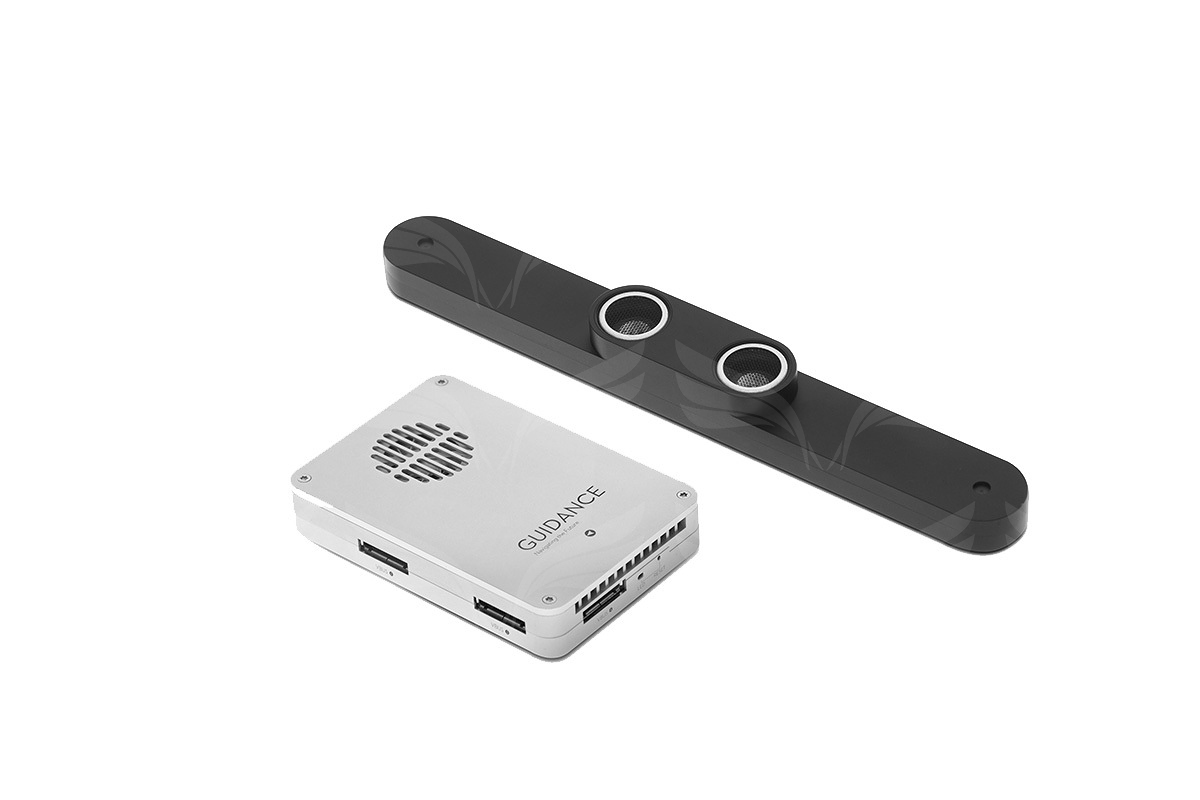

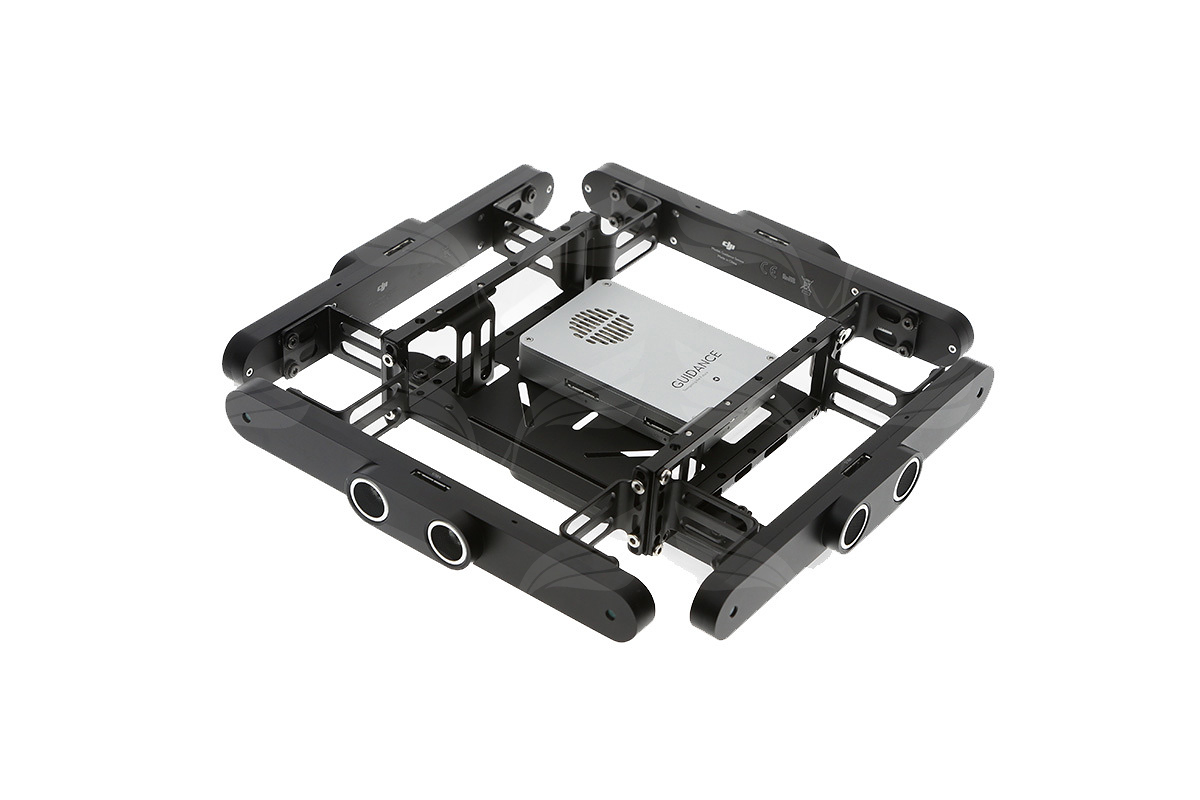

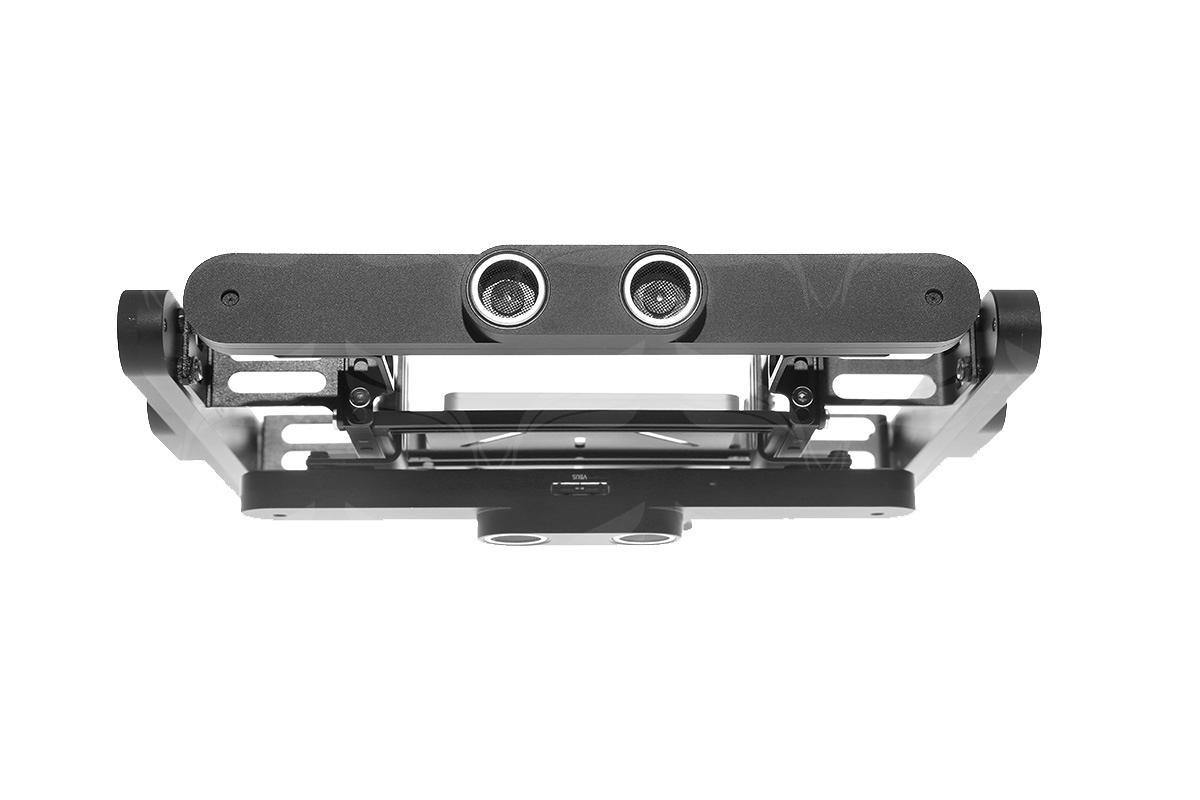

Guidance do rewolucyjny system do wykrywania przeszkód. Z potężnym przetwarzaniem danych, wbudowanymi kamerami, czujnikami ultradźwiękowymi i zaawansowanymi algorytmami. Guidance chromi Twoją platformę. W zestawie Guidance jest 5 odbiorników sygnału i procesor centralny.
Więcej informacji
High-Precision Vision Positioning
Even without GPS, achieve hovering that is accurate to within centimeters. Even when flying at high speeds, high-precision stereo algorithms provide positioning information over nearly any terrain. Guidance’s vision positioning system is effective at altitudes of up to 65 feet (20 meters).
Obstacle Sensing in Every Direction
Guidance continuously scans the nearby environment and detects obstacles in real time. When used with a DJI flight controller, it can tell your flight system to automatically avoid collision, even at high speeds.
SDK
Guidance is fully compatible with the DJI SDK and supports multiple interfaces for easy data export. Developers are free to create customized applications and expand the use of Guidance’s visual and ultrasonic sensors to suit any need.
Dane techniczne
| Physical Parameters | Dimensions | Guidance Core: 78.5 mm x 53.5 mm x 14 mm |
| Guidance Sensor: 170 mm x 20 mm x 16.2 mm | ||
| VBUS Cable: 200mm | ||
| Weight | Guidance Core: 64 g | |
| Guidance Sensor (single): 43 g | ||
| VBUS Cable (single)：11.6g | ||
| Performance Parameters | Velocity Detection Range | 0~16 m/s (From the ground 2 m) (The measurement shall prevail) |
| Velocity Detection Accuracy | 0.04 m/s (From the ground 2 m) | |
| Positioning Accuracy | 0.05 m (From the ground 2 m) | |
| Effective Sensor Range | 0.20 m ~ 20 m | |
| External Requirements | Good lighting | |
| Texture-rich surface with clear patterns | ||
| Hardware Parameters | Power Consumption | Max. 12 W (with all five Guidance Sensors) |
| Input Voltage | 11.1 V~25 V | |
| Operating Temperature | -10°C ~ 40°C | |
| System Interfaces | VBUS ✕ 5 | |
| CAN ✕ 1 | ||
| USB OTG 2.0 ✕ 1 | ||
| UART ✕ 1 | ||
| UART Level | 3.3V |
