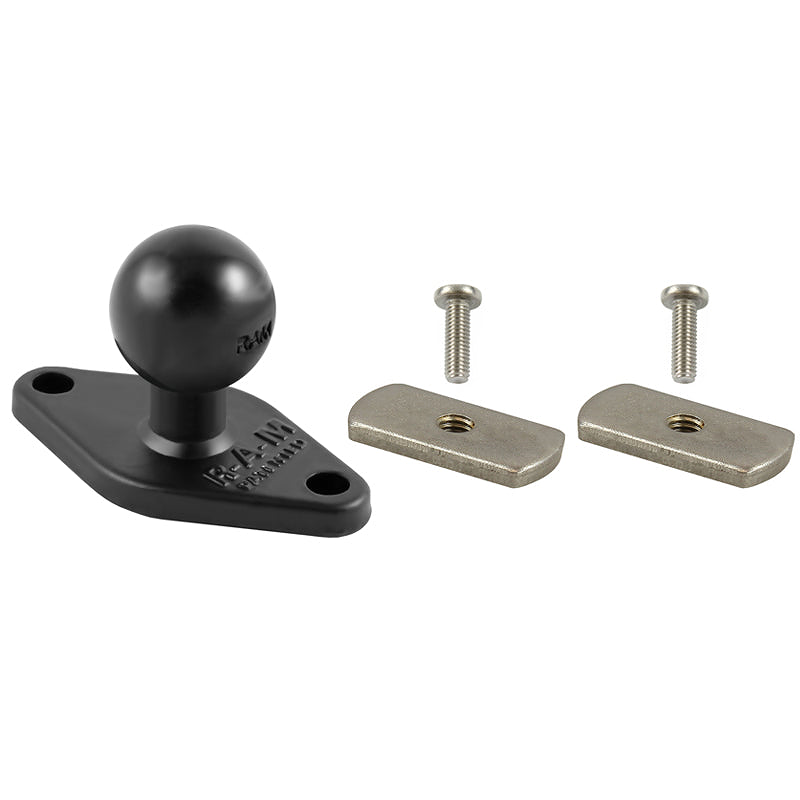

RAM Universal Wheelchair Ball Base - B Size / RAM-B-238-WCT
115,70 zł
netto 21%
Więcej informacji
| Overview | This B size RAM® diamond ball base features a universal hardware pack that accommodates the armrest and seat tracks on most major wheelchair brands, including Invacare, Permobil, and Quickie. Pair with a variety of compatible RAM® double socket arms and device holders to build a custom mount to meet your specific needs. |
|---|---|
| Hardware included | (2) #10-32 T-Nuts(2) #10-32 Flat Weld Nuts(2) #10-32 x 1/2" Machine Screws(2) M4 x 12mm Machine Screws(2)M4 x 20mm Machine Screws(2) M4 Stainless Steel Washers(2) M4 Nylock Nuts |
| T bolt dimensions | Large: .48" x .95"Small: .375" x .593" |
| Hole pattern | 2-Hole AMPS: 1.912" |
| Ball size | B Size (1") |
| Weight capacity | Standard Use: 2 lbsHeavy-Duty Use: 1 lb |
| Materials | Marine-grade aluminum |
| Packaging type | Retail Bag |
| Weight | 0.2 lb |
| Instructions | Wheelchair Ball |
| Documents | Drawing File - Diamond Ball Plate Wheelchair Mount Compatibility Guide Accessibility Catalog |
