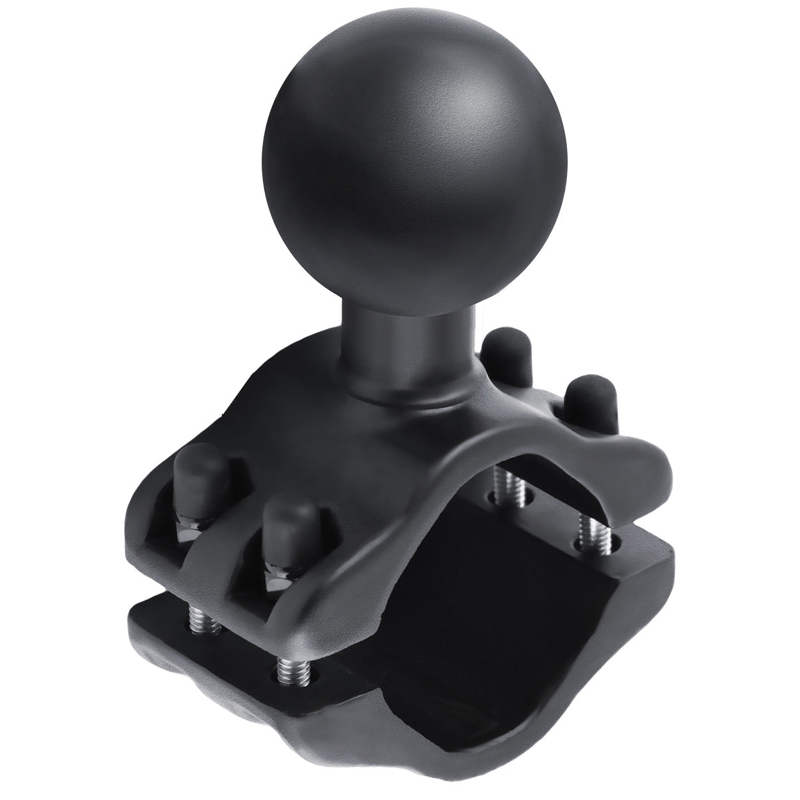

| Overview | The RAM-D-271U-2, round pipe base, consists of a 2.25" rubber ball connected that will connect to a pipe tubing diameter from 2" to 2.5" in diameter. |
|---|---|
| Hardware included | (4) 1/4"-20 x 1.5" Screws(4) 1/4"-20 Nylock Nuts(4) Rubber Caps |
| Clamp range | 2" - 2.5" diameter |
| Ball size | D Size (2.25") |
| Weight capacity | Standard Use: 6 lbsHeavy-Duty Use: 5 lbs |
| Materials | Marine-grade aluminum |
| Packaging type | Poly Bag |
| Weight | 1.22 lb |
| Documents | Drawing File - Rail Clamp Base Material Handling Catalog |
