FEATURES

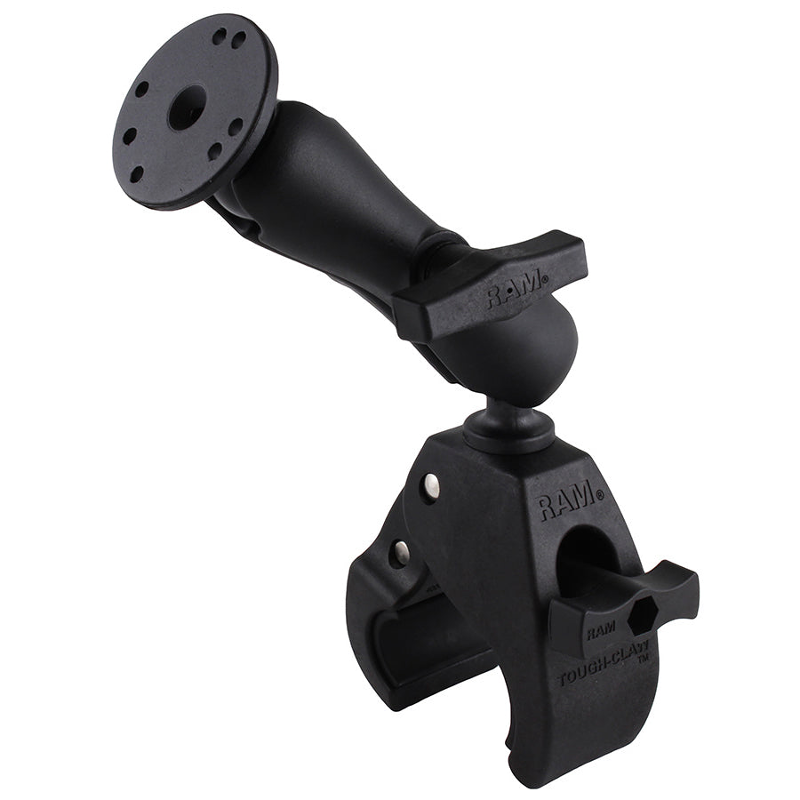

| Overview | The RAP-401-202U consists of the large Tough-Claw™ base, double socket arm and round base adapter. The RAM Tough-Claw™ is the perfect mounting base for quick and easy tool-less installation and removal on round, square, odd shaped rails and bars. The Tough-Claw™ can be clamped on rails from 1" - 2.2" outer diameter. The round base adapter contains the industry standard universal AMPS hole pattern, which will connect to a large variety of RAM Mount and third party cradles. The mount is designed with a RAM 1.5" diameter patented rubber ball and socket system that has adjustment points at both ends of the double socket arm; this allowing for almost infinite adjustment and perfect viewing angles. |
|---|---|
| Product dimensions | Overall Height: 11.5" |
| Clamp range | 1" - 2.2" diameter |
| Socket to socket length | 4.66" |
| Hole pattern | 4-Hole AMPS: 1.181" x 1.496"3-Hole 120-Degree: 1.812" Diameter |
| Plate size | 2.5" Diameter |
| Ball size | C Size (1.5") |
| Weight capacity | Standard Use: 4 lbsHeavy-Duty Use: 3 lbs |
| Materials | Marine-grade aluminumHigh strength composite |
| Packaging type | Poly Bag |
| Weight | 2.0 lb |
