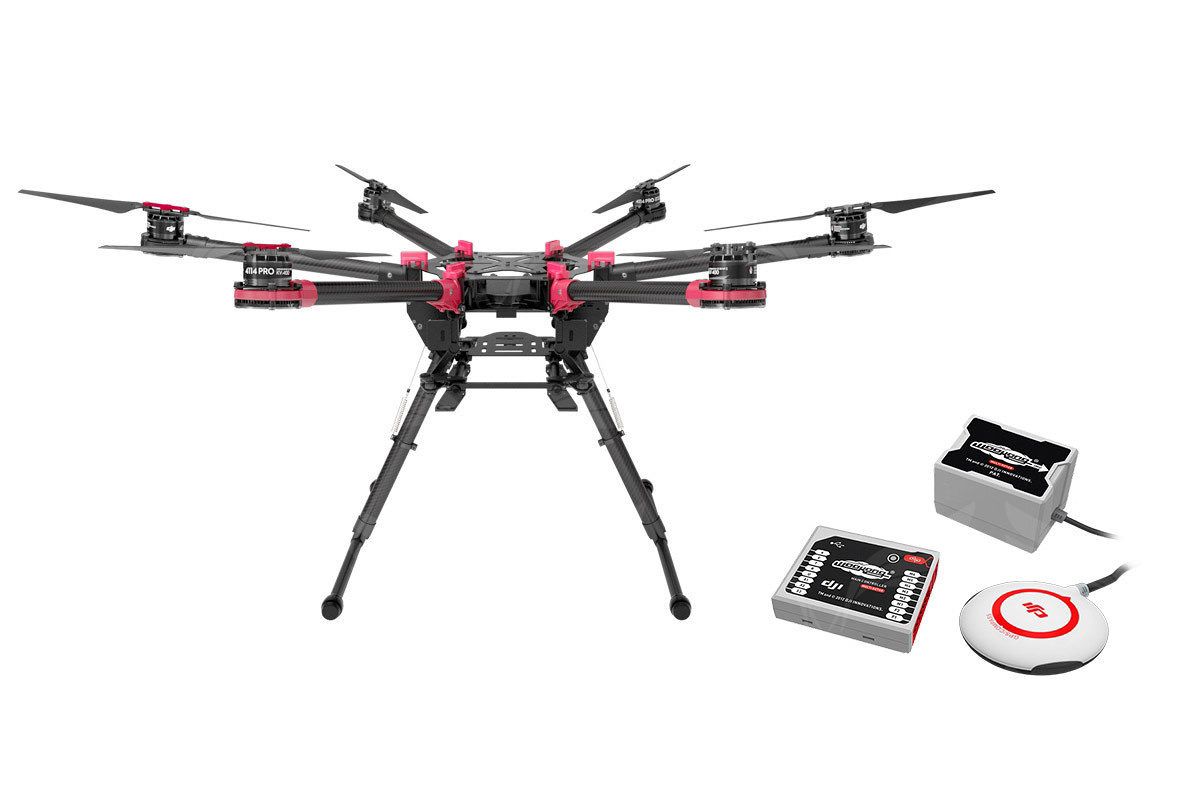

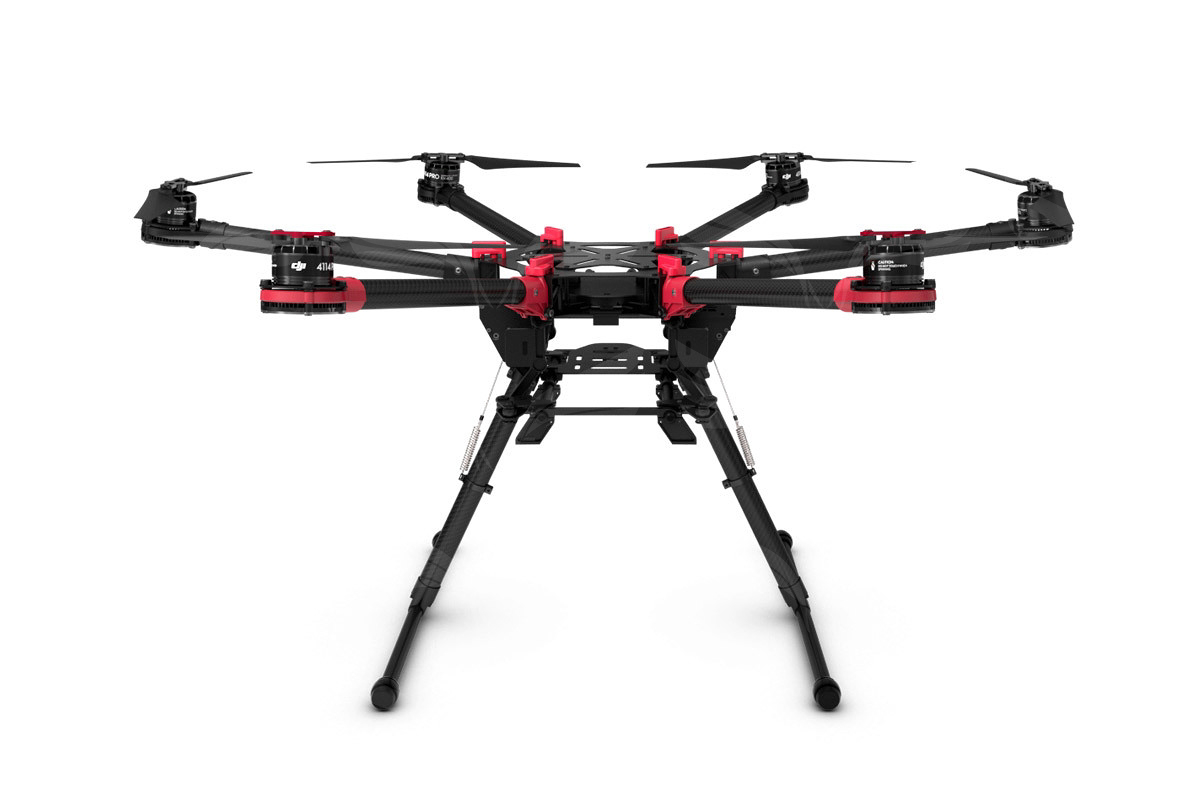

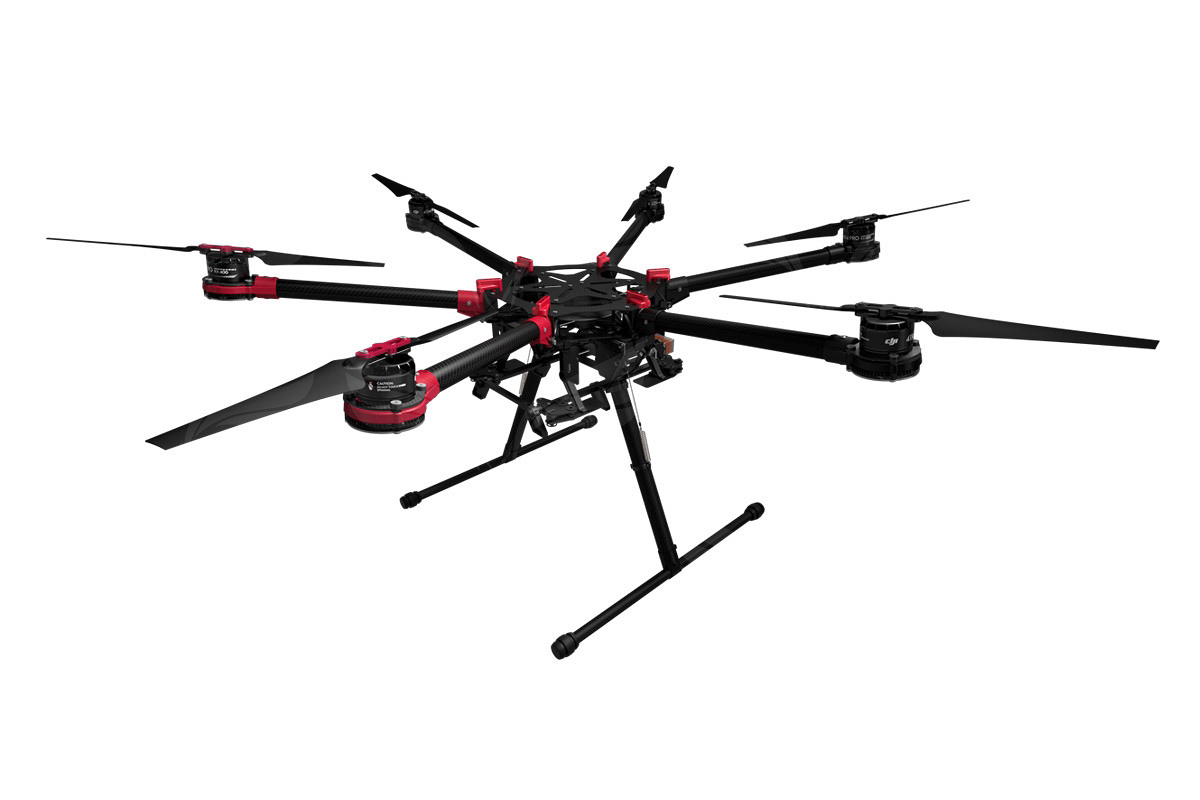

Frame | Diagonal Wheelbase900mm Frame Arm Length358mm Frame Arm Weight |
---|---|
Motor | Stator Size41×14mm KV400rpm/V Max Power500W Weight(With Cooling Fan)158g |
ESC | Working Current40A Working Voltage6S LiPo Signal Frequency30Hz ~ 450Hz Drive PWM Frequency8KHz Weight(With Radiators)35g |
Foldable Propeller (1552/1552R) | MaterialHigh strength performance engineered plastics Size15×5.2inch Weight13g |
Flight Parameters | Takeoff Weight4.7Kg ~ 8.2Kg Total Weight3.3Kg Power BatteryLiPo (6S、10000mAh~15000mAh、15C(Min)) Max Power Consumption3000W Hover Power Consumption1000W (@6.8Kg Takeoff Weight) Hover Time18min (@12000mAh& 6.8Kg Takeoff Weight) Working Environment Temperature-10 °C ~ +40 °C |
Gain Value Settings | For A2 Flight ControllerBasic: Roll 110%, Pitch 110%, Yaw 120% Attitude: Roll 220%, Pitch 220%, Vertical 120% For WooKong-M Flight ControllerBasic: Roll 160%, Pitch 160%, Yaw 160% Attitude: Roll 190%, Pitch 190%, Vertical 100% |
Size and Weight | |
---|---|
Basic Performance | Multi Rotor TypesQuad-Rotor: +4,x4; Hex-Rotor +6,x6,Y6,Rev Y6; Octo-Rotor +8,x8,V8 Supported ESC Output400Hz refresh frequencys Recommended TransmitterPCM or 2.4GHz with minimum 7 channels and Failsafe function available on all channels Recommended Battery2S~6S LiPo Power ConsumptionMAX 5W (0.9A@5V, 0.7A@5.8V,0.5A@7.4V,0.4A@8V) Operating Temperature-5°C to +60°C (You have to keep the IMU warm if you want to use it under low temperature, could be -5°Cor lower) Assistant Software System RequirementWindows XP sp3 / Windows 7 / Windows 8 |
Flight Performance | Hovering AccuracyVertical: ± 0.5m Horizontal: ± 2m Suitable Wind Condition< 8m/s (17.9mph/28.8km/h) Max Yaw Angular Velocity150 deg/s Max Tilt Angle35° Ascent/Descent±6m/s |

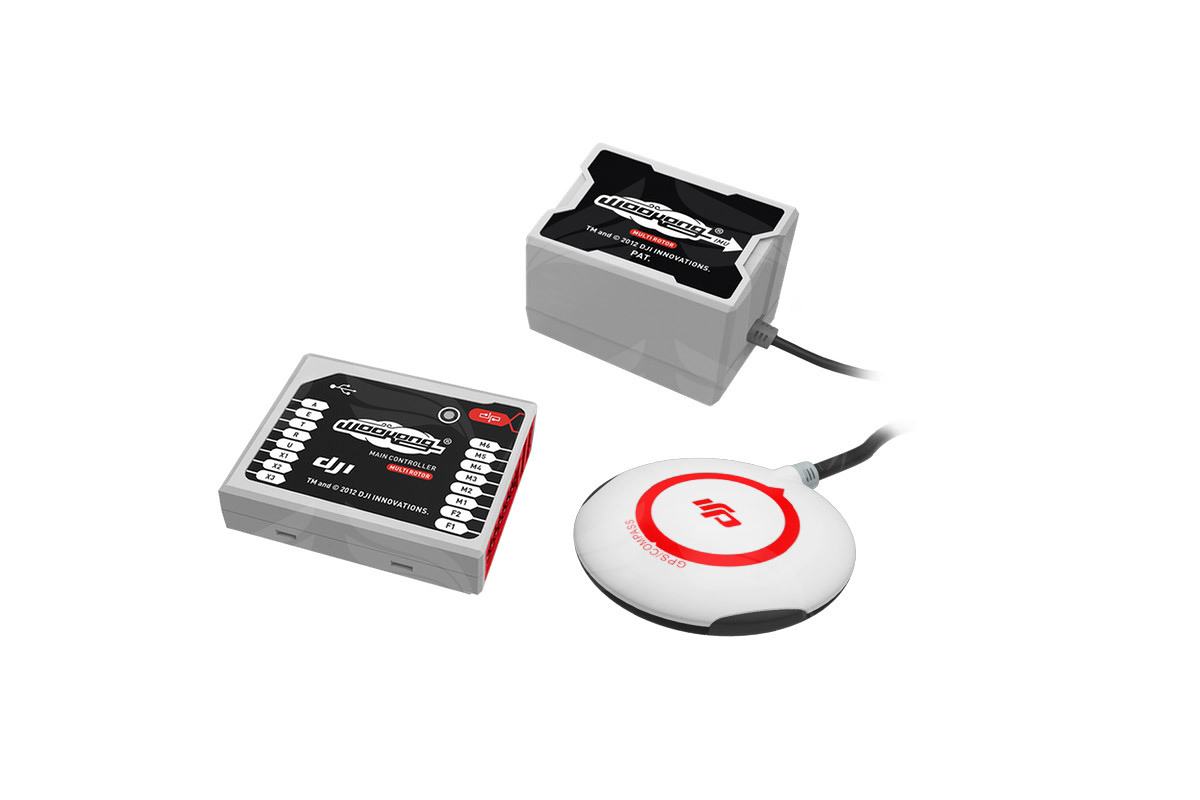

Hardware | WeightTotal Weight: <= 118g(overall) DimensionsMain Controller: 51.2mm x 38.0mm x 15.3mm IMU: 41.4mm x 31.1mm x 27.8mm GPS & Compass: 50mm (diameter) x 9mm LED Indicator: 25mm x 25mm x 7mm PMU: 39.5mm x 27.5mm x 9.7mm Built In FunctionsThree Modes Autopilot Enhanced Failsafe 2-axis Gimbal Support Low Voltage Protection Go Home & Auto Landing D-Bus Receiver Supported Intelligent Orientation Control |
